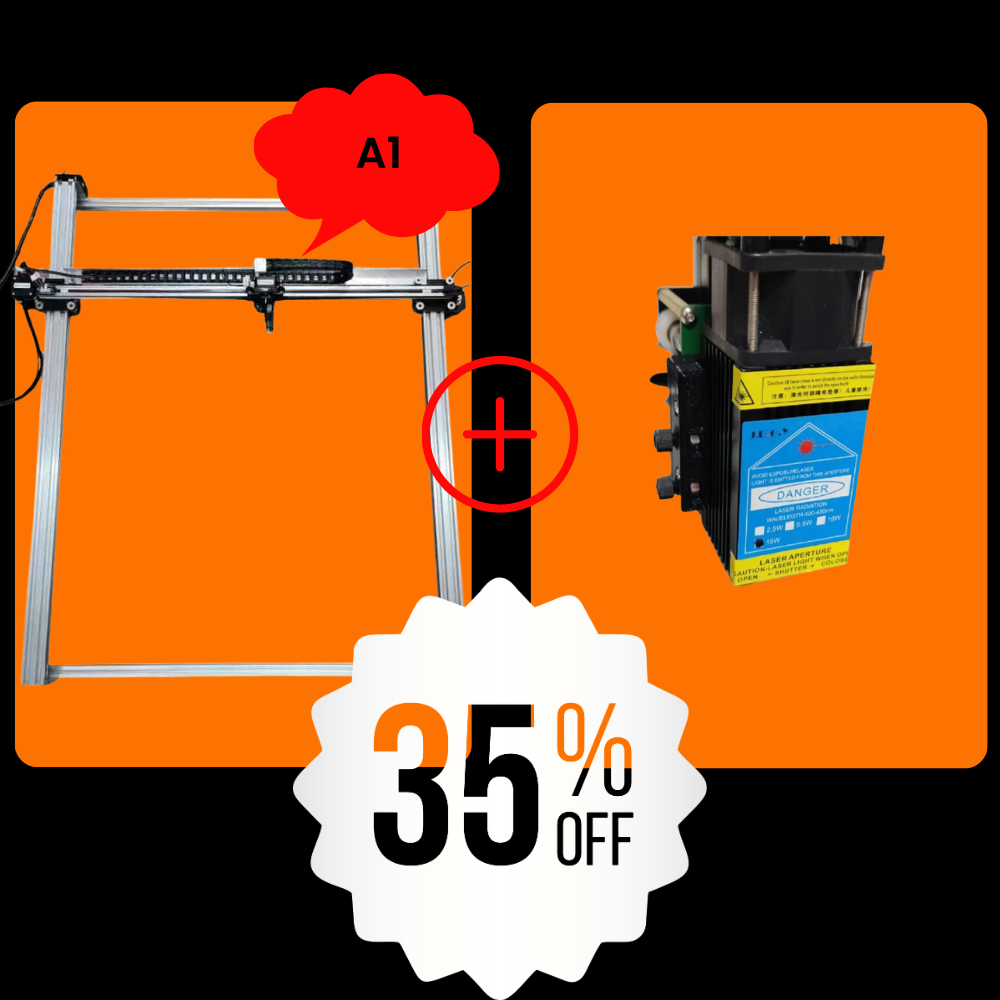

iDraw H A1+15W 레이저 헤드 번들

iDraw H A1+15W 레이저 헤드 번들

🔥 BFCM Mega Sale | UP TO 50% OFF ⚡

₩1,853,000 KRW
₩2,852,000 KRW ₩1,853,000 KRW
세일 품절
배송비는 결제 시 계산됩니다.
iDraw H A1 대형 플로터 드로잉 로봇 펜 플로터 드로잉 머신 필기 머신 서명 머신| UUNA TEK (플러그)

iDraw H A1+15W 레이저 헤드 번들입니다. iDraw H





전체 세부 정보 보기

Value Propositions

  • Generous A1 Working Area (23.4 × 33.1 in / 841 × 594 mm)

    The ideal format for studio artwork, calligraphy, prototypes, ethnic costume drafting, leather marking, and classroom technical drawings.

  • Dual-Function Versatility (Pen Plotter + 15W Laser)

    Easily swap between the pen holder and the 15W laser module to transition from vector drafting to laser engraving or cutting on various materials.

  • 15W High-Power Laser Module

    Delivers high speed and precision for surface engraving and clean cutting on wood, leather, kraft paper, opaque acrylic, and coated metals.

  • Industrial-Grade Precision & Speed

    Features 0.01 mm X/Y mechanical precision, 4× 42-stepper motors, a heavy-duty aluminum and steel frame, and a drag chain cable management system for smooth performance up to 12,000 mm/min.

  • Space-Saving Vertical Mounting

    Designed for flexible studio environments, the iDraw H A1 can be mounted vertically on a wall or stand without sacrificing drawing or engraving accuracy.

  • Seamless G-Code & Universal Software Support

    Fully compatible with Inkscape (for pen plotting, calligraphy, Hershey Fonts, and Email Merge) and LightBurn / LaserGRBL (for laser engraving and cutting). Supports SVG, DXF, PNG, JPG, and PDF formats on Windows, Mac OS, and Linux.
Option / Feature iDraw H A1 Plotter Only 15W Laser Head Only Best Value
iDraw H A1 + 15W Laser Bundle
Functionality Vector Drawing & Handwriting Engraving & Cutting Add-on Dual-Function (Plotter + 15W Laser)
Regular Price $1,699.00 USD $399.00 USD $2,098.00 USD
Current Price $1,274.00 USD $190.00 USD $1,363.70 USD
(35% OFF MSRP)
Total Savings Save $425.00 Save $209.00 🔥 Save $734.30 USD
Included Package Standard Pen Holder & Accessories 15W Laser Head & Mount Bracket Full A1 Plotter Kit + 15W Laser Module + Mounting Hardware + Safety Glasses
Value Rating Ideal for pure drawing needs Add-on for existing owners Maximum Savings: Complete Dual-Function Studio Setup
🏷️ Why Choose the Bundle Deal?
Purchasing the iDraw H A1 Plotter ($1,699.00) and the 15W Laser Head ($399.00) separately costs $2,098.00. By taking advantage of our exclusive Bundle Deal (35% OFF), you get the complete dual-function setup for just $1,363.70—saving an incredible $734.30 instantly!

Technical Specifications

Working / Drawing Area: A1 Size — 23.4 × 33.1 in (841 × 594 mm)

Laser Module Output Power: 15W Optical Power Module

Laser Head Weight: ~500 g (Engineered for iDraw H reinforced frame)

Mechanical Precision: X-axis: 0.01 mm / Y-axis: 0.01 mm

Max Movement Speed: 0 – 12,000 mm/min

Motors & Motion Drive: 4 × 42-Stepper Motors with Drag Chain Cable Management System

Frame & Build Materials: Industrial Aluminum Profile + Heavy-Duty Steel Plate

Pen Holder Specifications: Adjustable Angle (70°–90°), supports pens up to 16 mm diameter

Net Weight: ~11 lb (~5 kg)

Compatible Laser Materials: Wood, Bamboo, Kraft Paper, Leather, Fabric, Opaque Acrylic, Coated Metal, Thin Plastics

Incompatible Laser Materials: Bare/Uncoated Metals, Stone, Ceramics, Gemstones, Transparent Glass, Transparent Acrylic

Software Compatibility: Inkscape (Drawing/Plotting for Windows, Mac OS, Linux), LightBurn & LaserGRBL (Laser Engraving/Cutting)

Supported File Formats: SVG, DXF, JPG, PNG, BMP, PDF

Connectivity: USB, Bluetooth

Input Voltage: 110V–220V AC Input; DC Power Adapter

Mounting Options: Flat Surface Setup, Vertical Wall/Stand Mount

FAQ

Q1: Can I use the pen plotter and the 15W laser head at the same time?

A: No, they are swapped out depending on your project. The machine uses a quick-switch mounting setup—simply replace the pen holder with the 15W laser module (and plug in the dedicated control cable) when you want to switch from drawing to laser engraving/cutting.

Q2: Which software should I use for drawing vs. laser engraving?

A: For pen plotting and vector calligraphy, we recommend Inkscape with customized UUNA TEK extensions (supports Hershey Fonts and Email Merge). For laser engraving and cutting with the 15W head, we recommend LightBurn or LaserGRBL.

Q3: What materials can the 15W laser head cut or engrave?

A: The 15W laser module excels at cutting light wood, kraft paper, leather, and fabric, as well as engraving bamboo, opaque acrylic, coated/painted metals, and plastics. Note: It cannot cut or engrave bare/uncoated metals, stone, ceramics, transparent glass, or transparent acrylic.

Q4: Can this A1 machine be mounted vertically?

A: Yes! The iDraw H A1 features vertical mounting capabilities, allowing you to install the machine on a wall or vertical frame to save floor and desk space in your studio.

Q5: Are laser safety gear and mounting accessories included in this bundle?

A: Yes, the bundle includes the complete iDraw H A1 plotter kit, the 15W laser module, custom mounting hardware/cables, and protective laser safety glasses for safe operation.
